R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting

Product Categories
Qingdao Run Sheng Lin Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

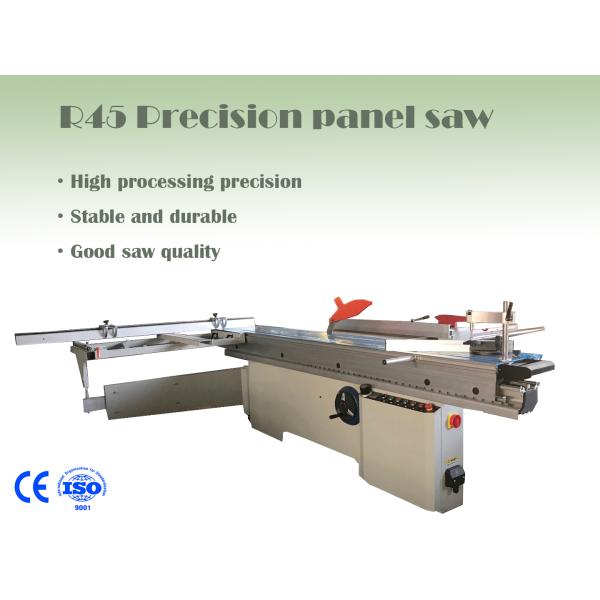

R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting

Place of Origin : China

Brand Name : Rensolin

Packaging Details : Wrapped film or wooden box

Supply Ability : 300Sets/Month

Price : $2,999.00/sets >=1 sets

Certification : CE,ISO

MOQ : 1Set

Delivery Time : 5-7days

Payment Terms : T/T

Condition : New

Type : Panel Saw

Use : cutting board

Style : Horizontal

Usage : cutting board

Voltage : 220/380/415

Dimension(L*W*H) : 3200*3300*900

Warranty : 2 years

Weight (KG) : 950 KG

Power (kW) : 5.5+1.1kw

Key Selling Points : High-accuracy

Max.Cutting Height at 90°(mm) : 70mm

Max.Cutting Height at 45°(mm) : 60mm

Max. Length of Workpiece (mm) : 3200mm

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Other

Marketing Type : hot product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 2 years

Core Components : Motor

name : panel saw

The biggest cutting width : 1250mm

Height of cut(300mm) : 70mm

Max cutting thickness of 45degree : 60mm

Speed of main saw spindle : 6000r/min

Titing saw blade : 0-45degree

The motor power : 5.5+1.1kw

scoring spindle diameter : 20mm

Overall dimensions : 3250*3350*900

Gross weight : 950kg

Port : Qingdao,China

Contact Now

High Precision R45 Sliding Table Saw for Wood Panel Cutting and Melamine Board Cuttin
Products Description
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
Product Paramenters
Name
R45 panel saw
Dioension of sliding table
3200*390mm
Main spindle diameter
30mm
Maximum sawing length
3200mm
Maximum sawing width
1250mm
The motor power
5.5+1.1kw
Titing saw table
0-45degree
Speed of main saw spindle
6000r/min
Overall dimension
3250*3350*900mm
Gross weight
950kg
product advantages

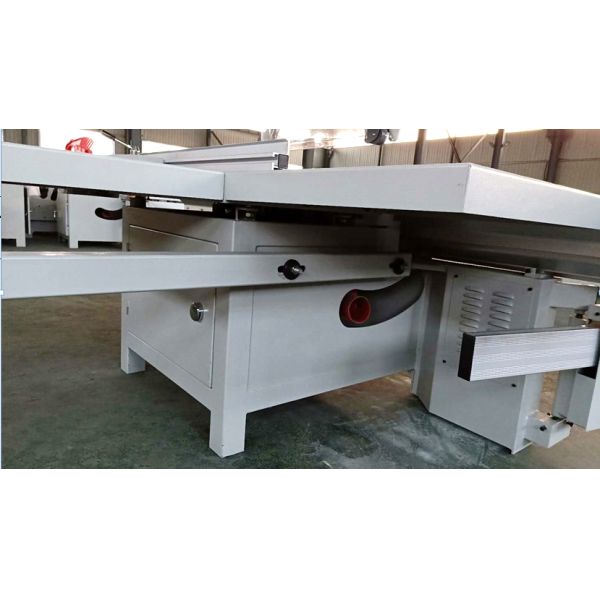

Strong body
1.Use stronger with 6mm thick steel; 2.All the body are cut by laser cutting machine;
3.Smoother without burr, make the machine very stability;
4.Fine appearance, beautiful and wear-resistant;
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting

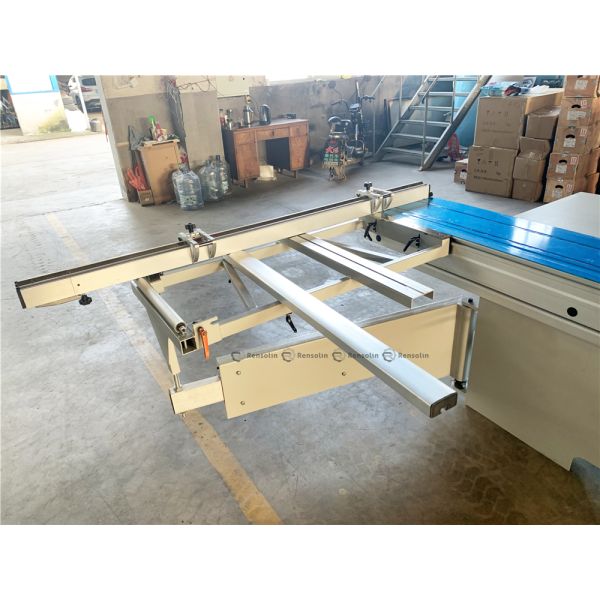

High-quality sliding table
1.use Import Yongli brand sliding table, guarantee high strength, no deformation, long service life; 2.Step-lock device, Firmly
fixed the sliding table; 3.Europe style double table, the double layers sliding table make the machine more stable and durable；
1.9m Large European Ruler
1.9m Large European shelf ruler, Aluminum alloy materials, stable and non displacement, saving time and labor,with clear, accurate data
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting

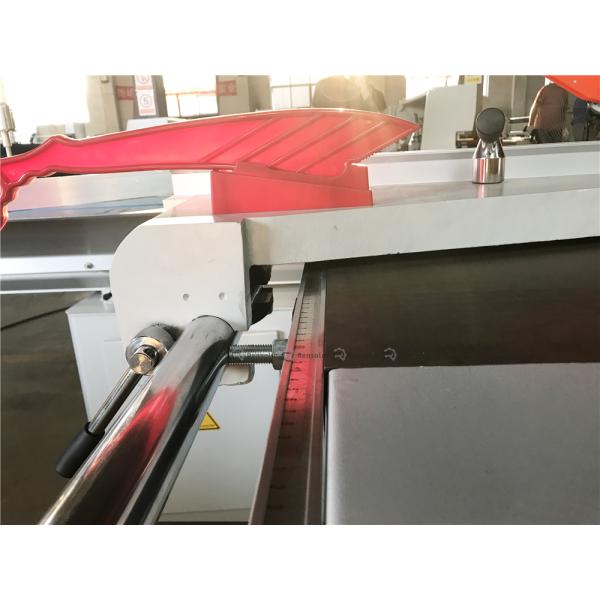

Fine-tuning Profiling Seat
Bigger and longer Profiling seat, can be finely adjusted, and the size adjustment is more convenient.
Motor:5.5kw+1.1kw
5.5kw+1.1kw aluminum shell copper wire ring motor, high-power motor
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
DELIXI and CHNT appliance
1.China famous brands DELIXI and CHNT appliance； 2.Add the Power off switch,protect worker's safe； 3.Specially designed thermal
protection function,protect personal safety;

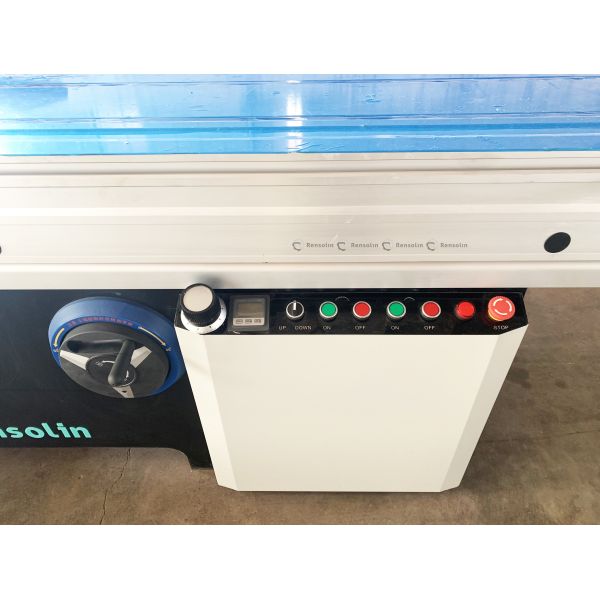

Electric Automatic Model
1.Electric digital display 0-45degree; 2.Electric main saw lifting up and down;
R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting
SERVICE
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
